Hydraulic Blow Moulding Machines

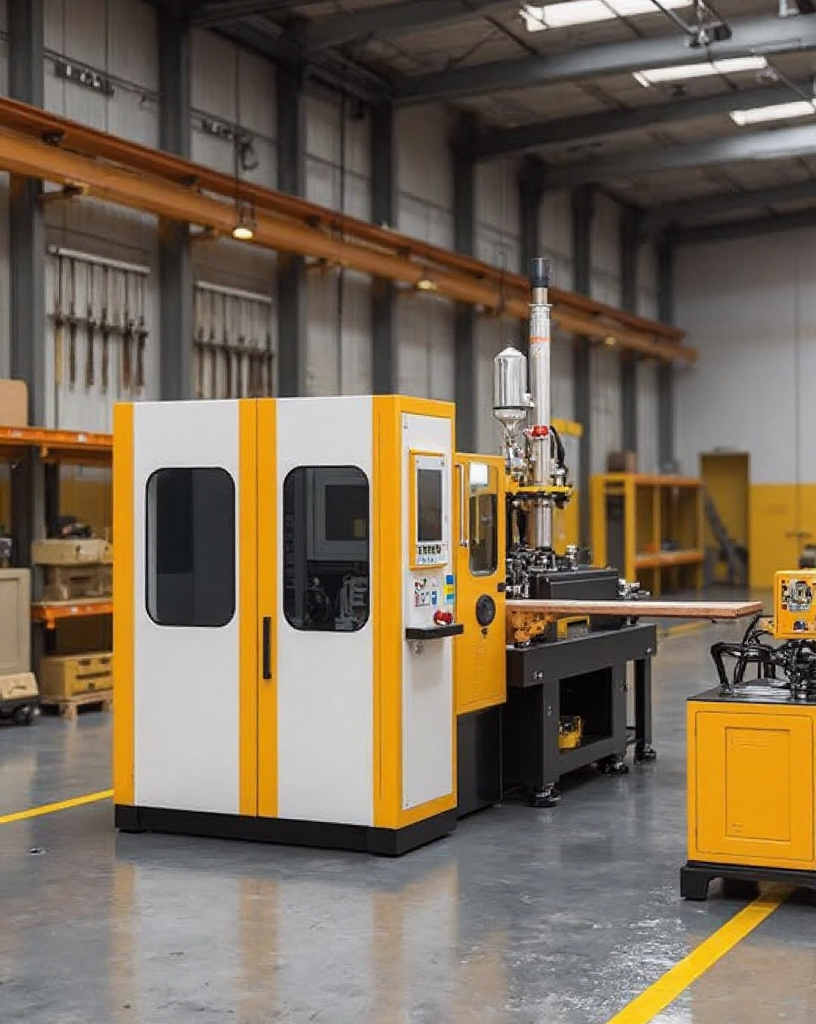

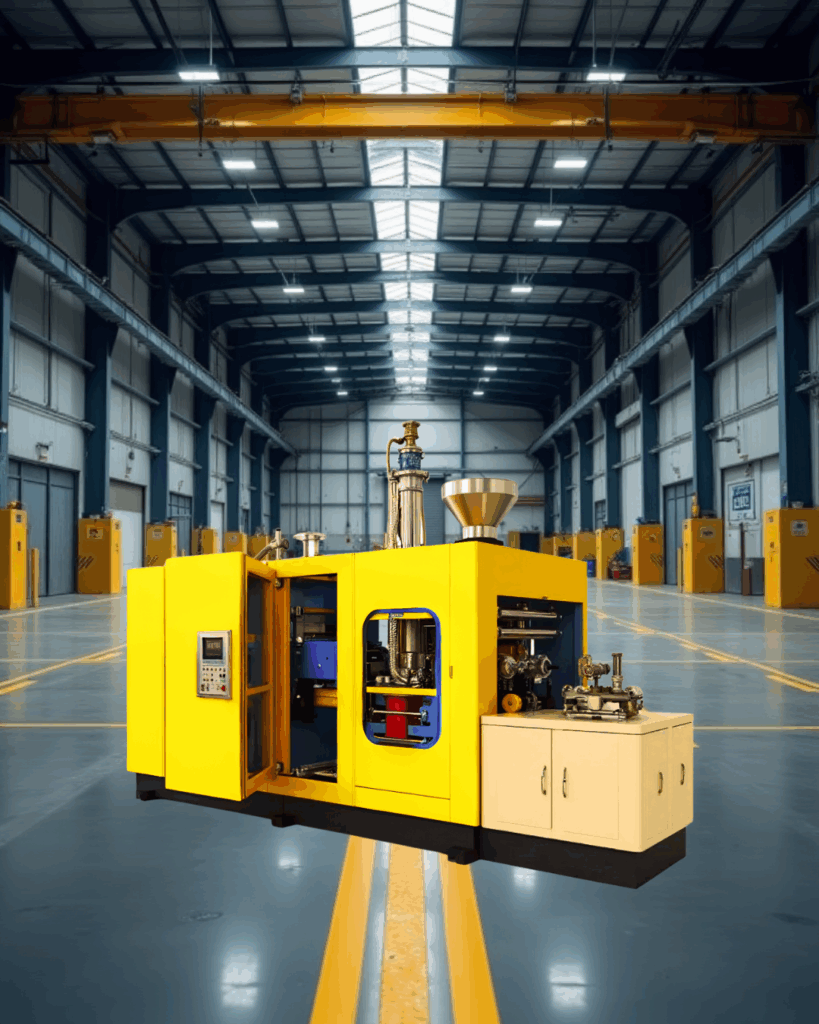

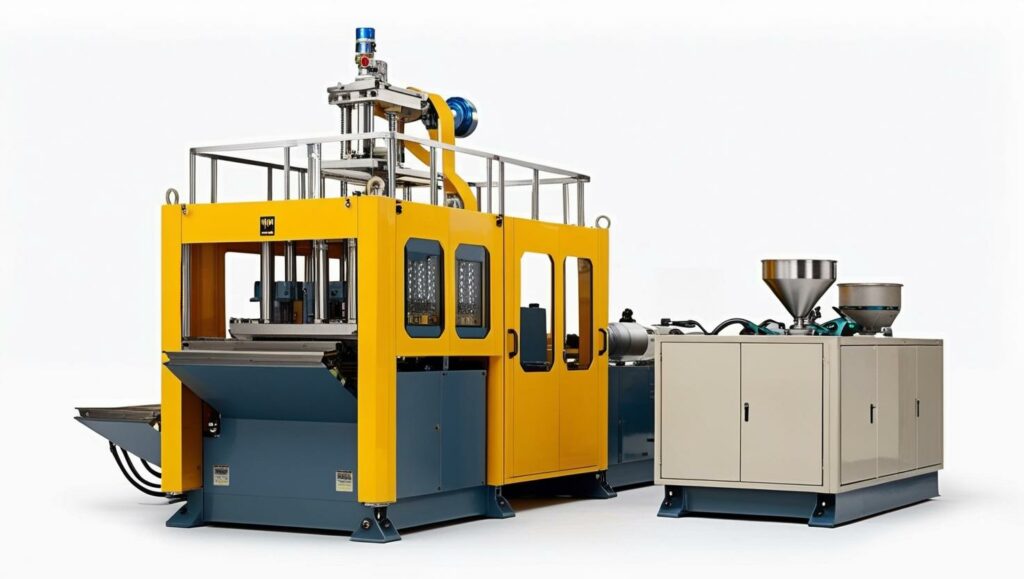

HX-One
Single Station Extrusion Blow Moulding Machine
Built for versatility and consistency, the HX-One is ideal for small to mid-sized container production. Designed with a single station, it’s perfect for streamlined production where footprint and precision matter.
Ideal for:
– Automotive fluids
– Household and industrial cleaning products
– Garden and hardware containers
Technical Data:
- Max container volume: 5–10 L
- Mould clamping force: 140 kN
- Hydraulic working pressure: 130 bar
- Pneumatic working pressure: 6–10 bar
- Cycle time: 2.5 sec
- Heating zones: min. 8
Contact us to learn how HX-One can optimize your production!

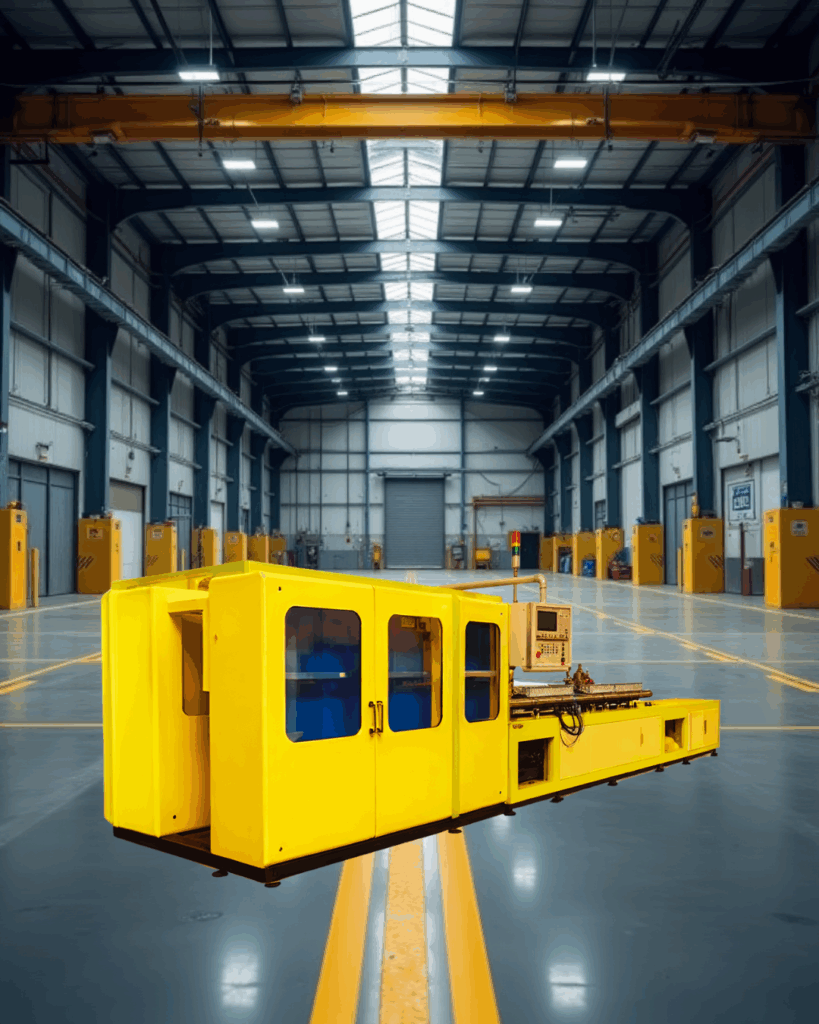

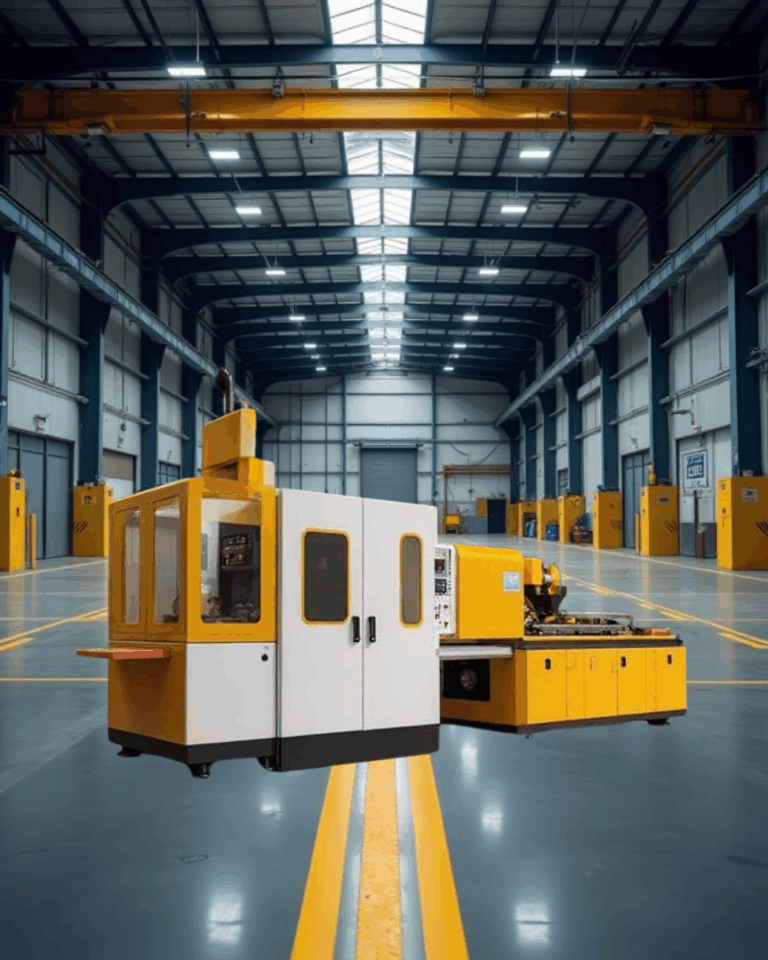

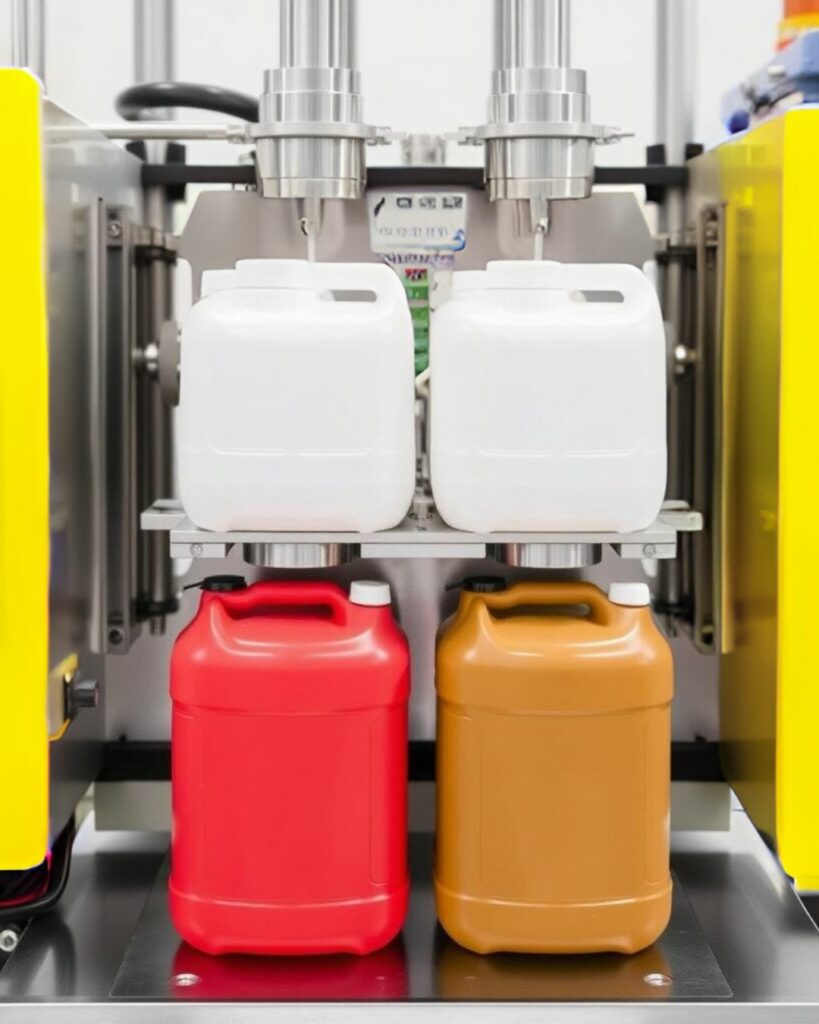

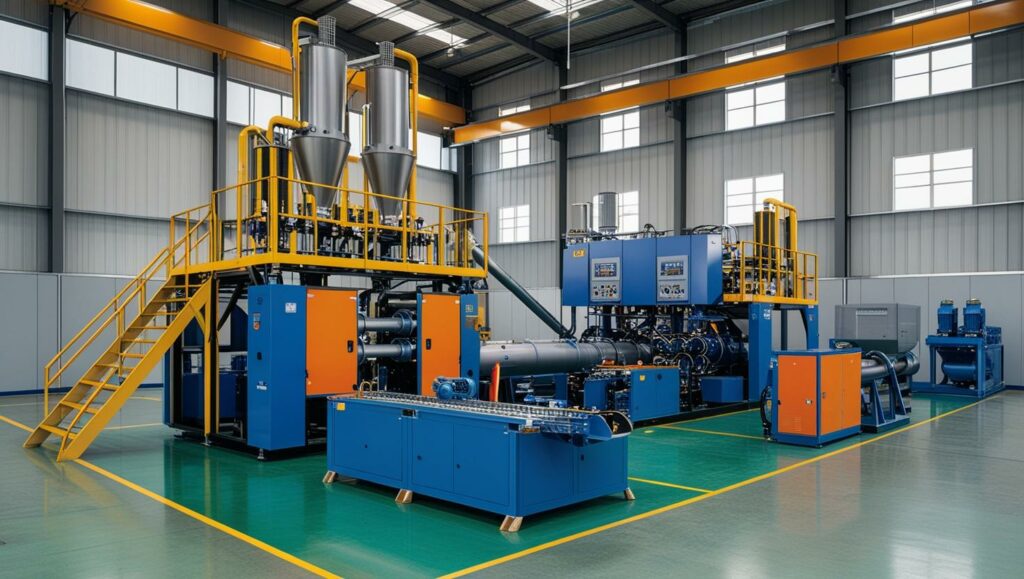

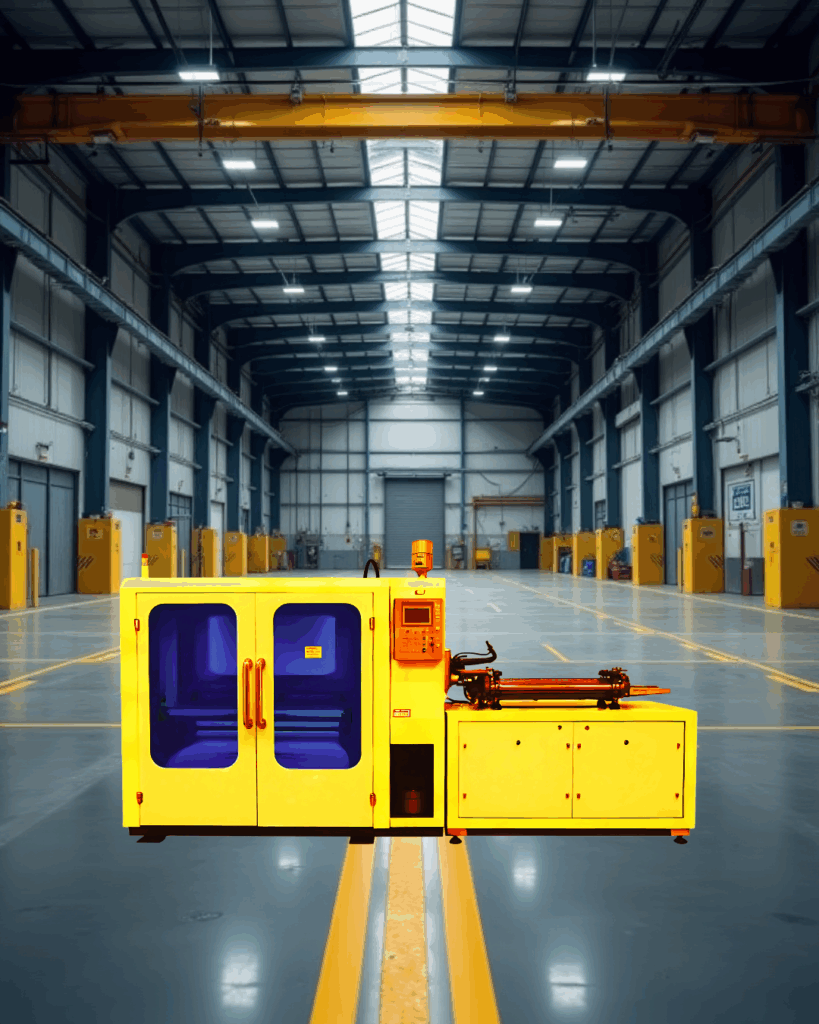

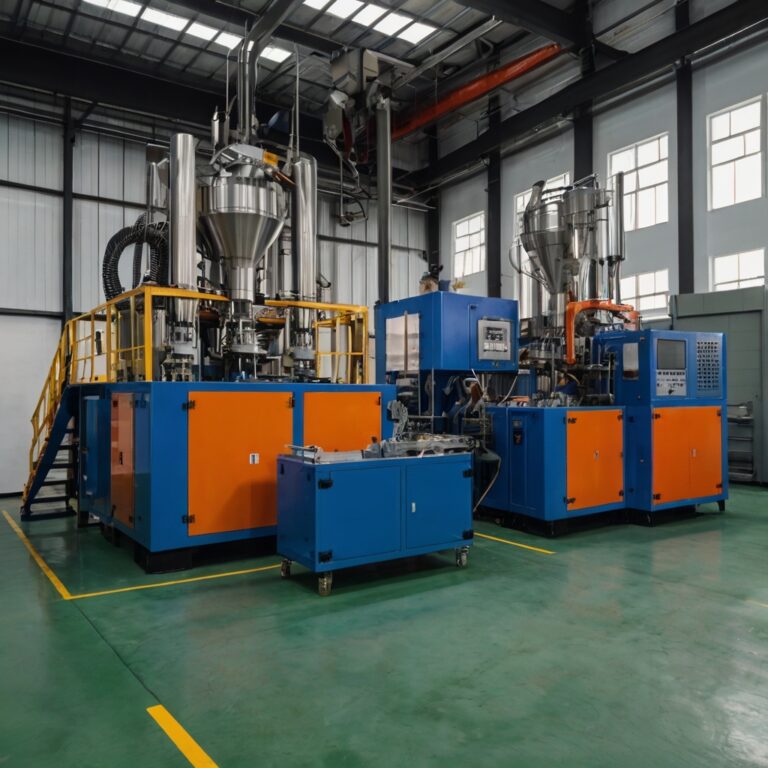

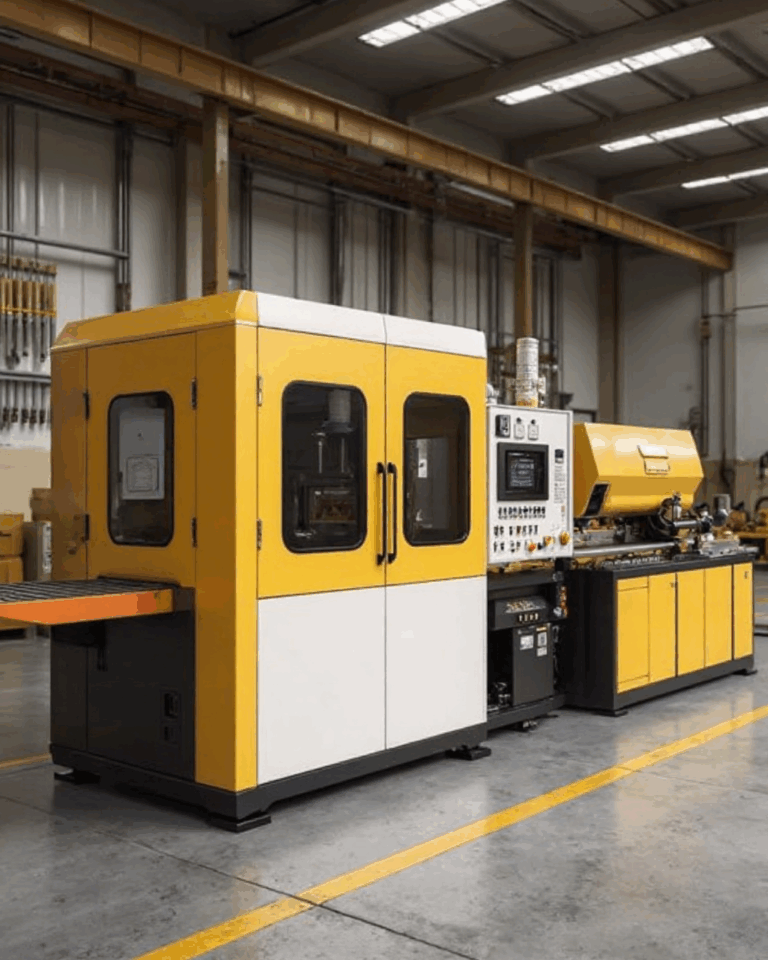

HX-Twin
Double Station Extrusion Blow Moulding Machine
HX-Twin features twin stations for double the output. It’s a workhorse for operations with medium-to-high demand and offers excellent repeatability across continuous runs.
Ideal for:
– Lubricant and chemical packaging
– Beverage industry secondary containers
– Fuel additive and industrial supply jerrycans
Technical Data:
- Max container volume: 5–10 L
- Mould clamping force: 140 kN
- Hydraulic working pressure: 130 bar
- Pneumatic working pressure: 6–10 bar
- Cycle time: 2.5 sec
- Heating zones: min. 8
Get in touch to discuss how HX-Twin fits your production line!

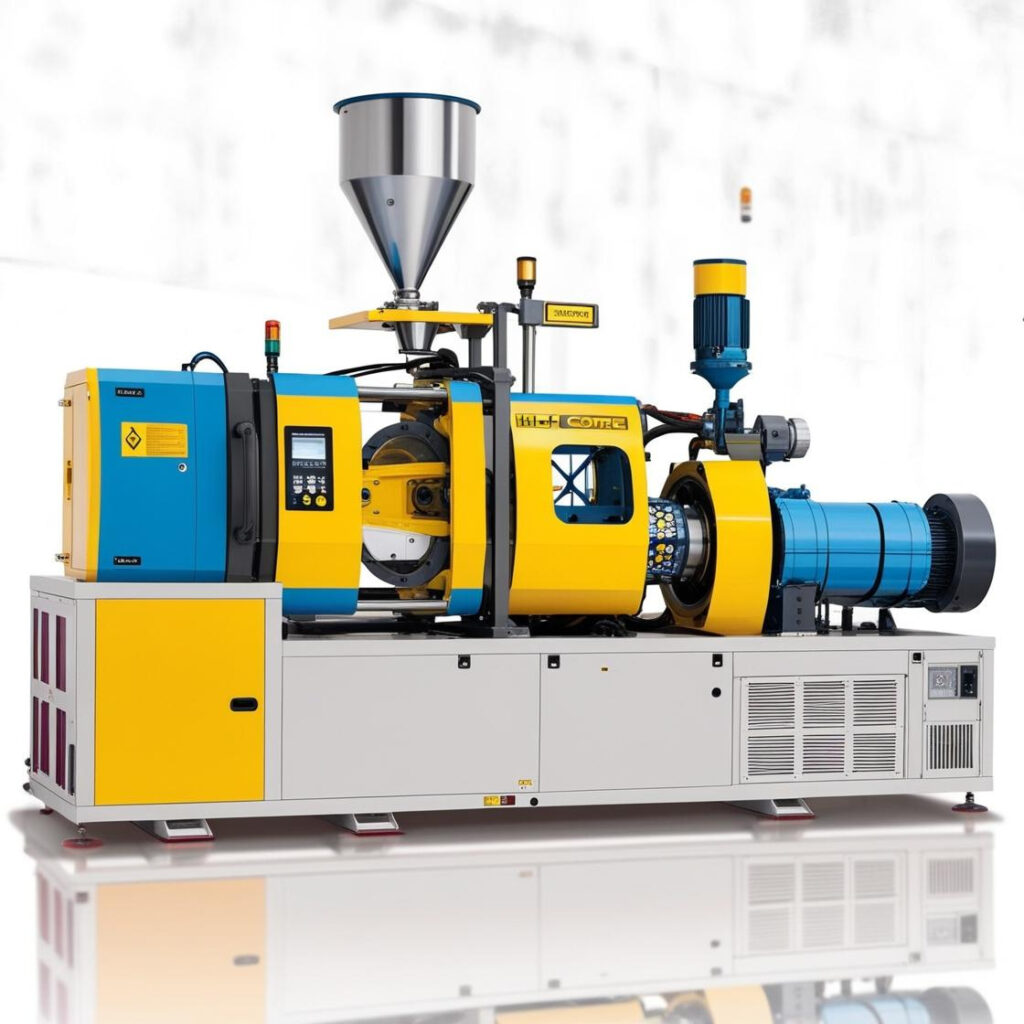

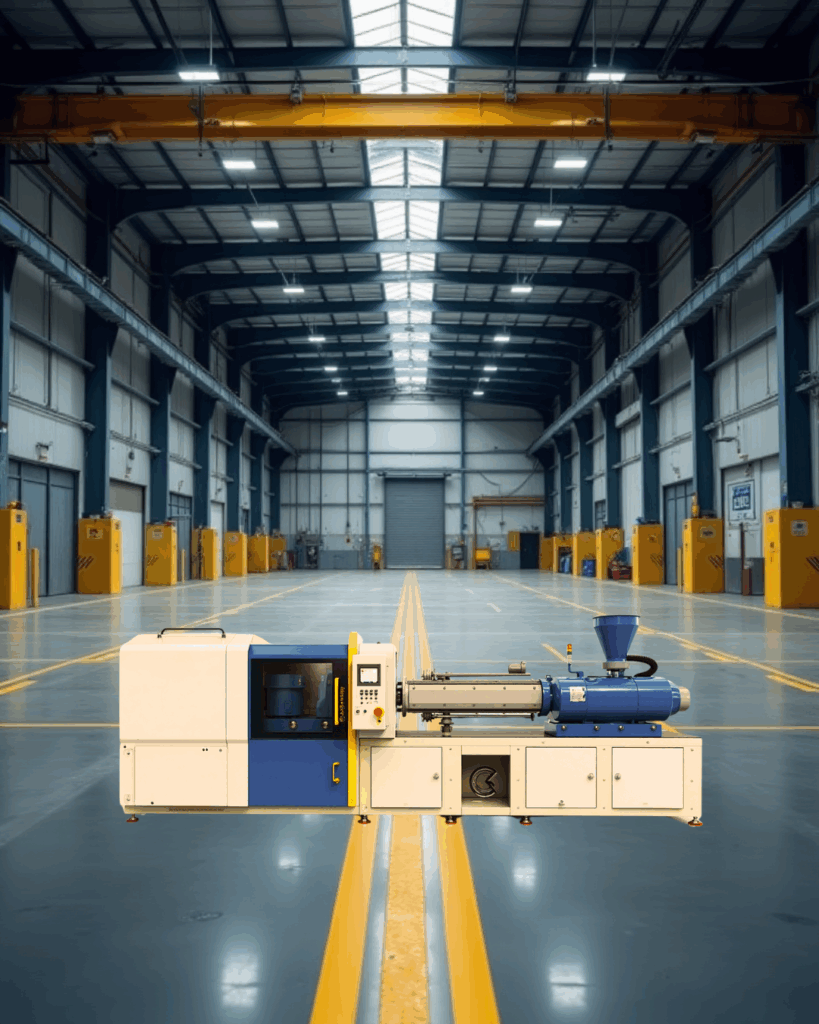

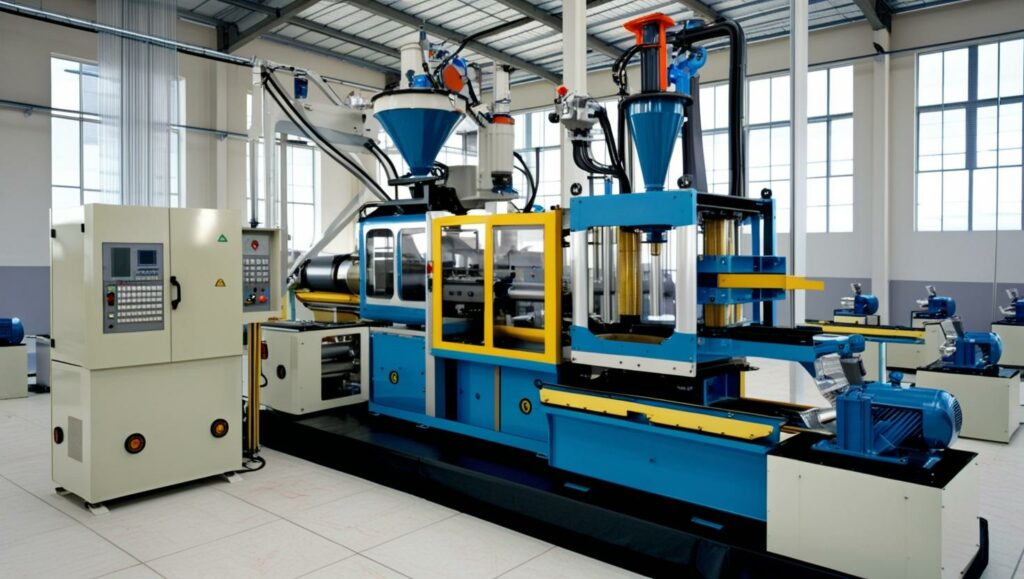

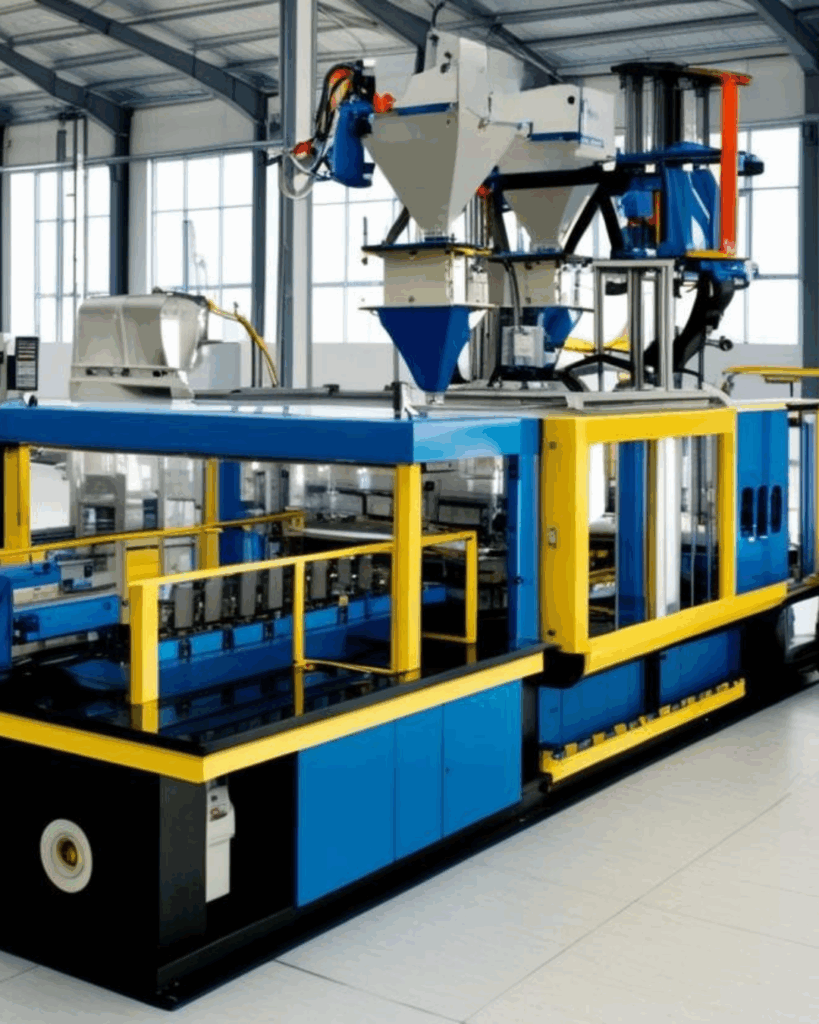

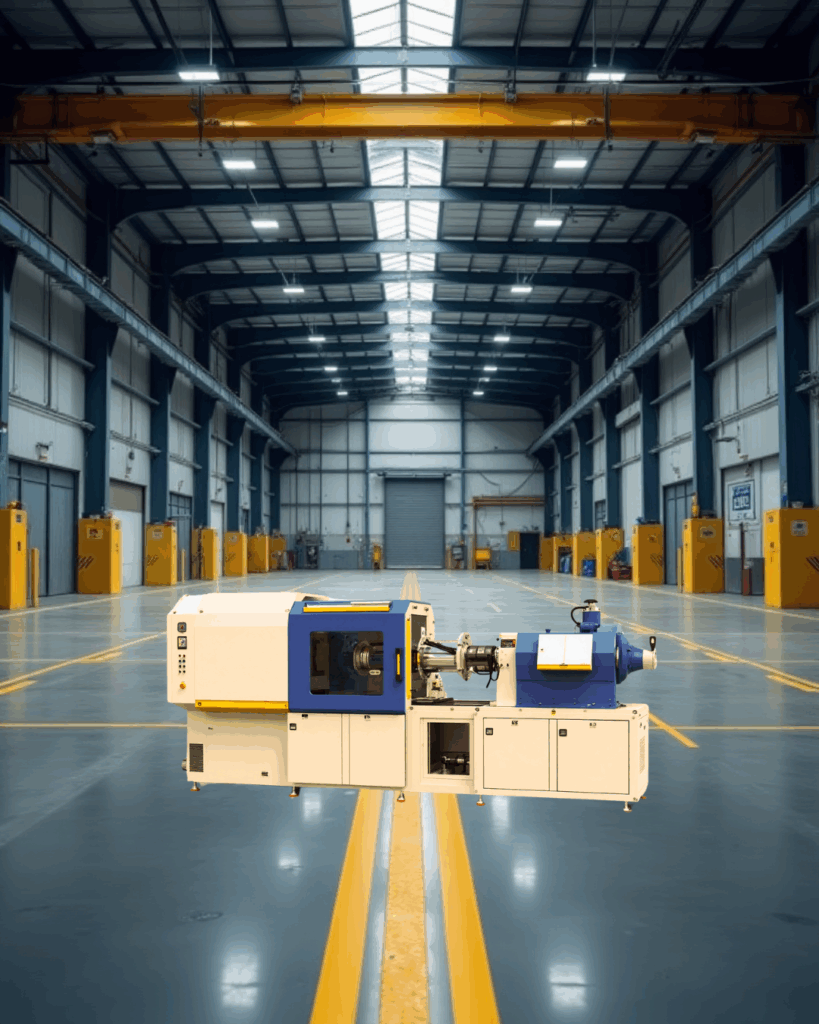

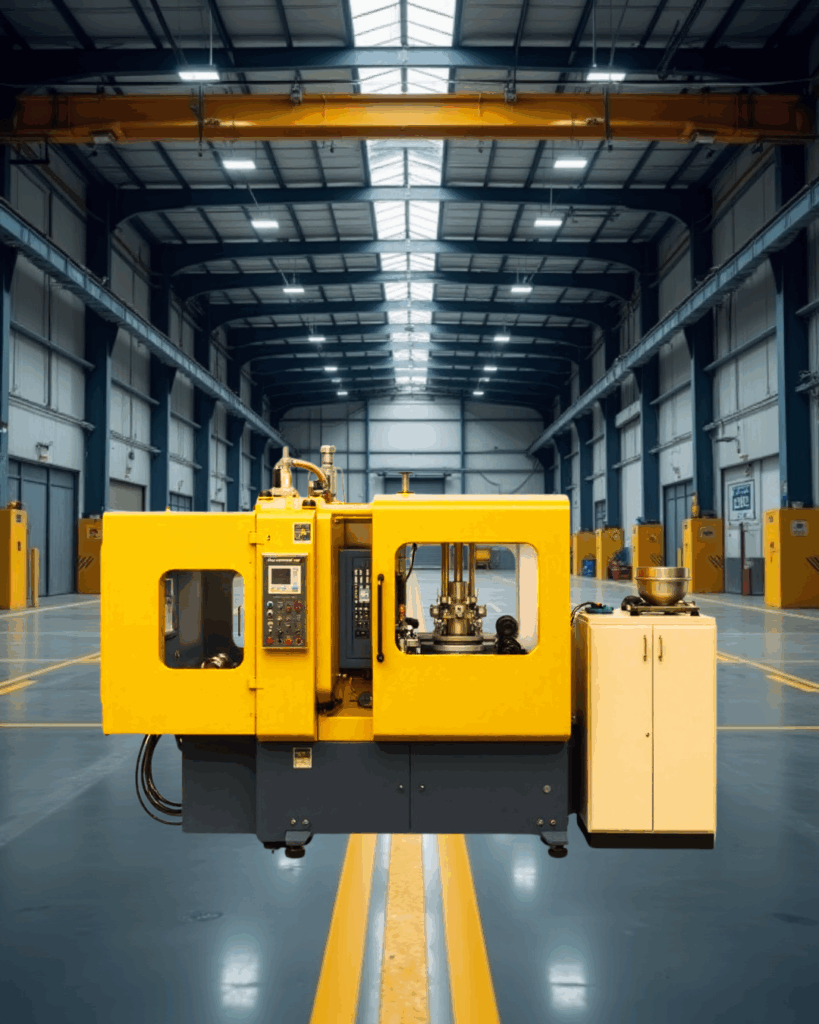

HJ-Core

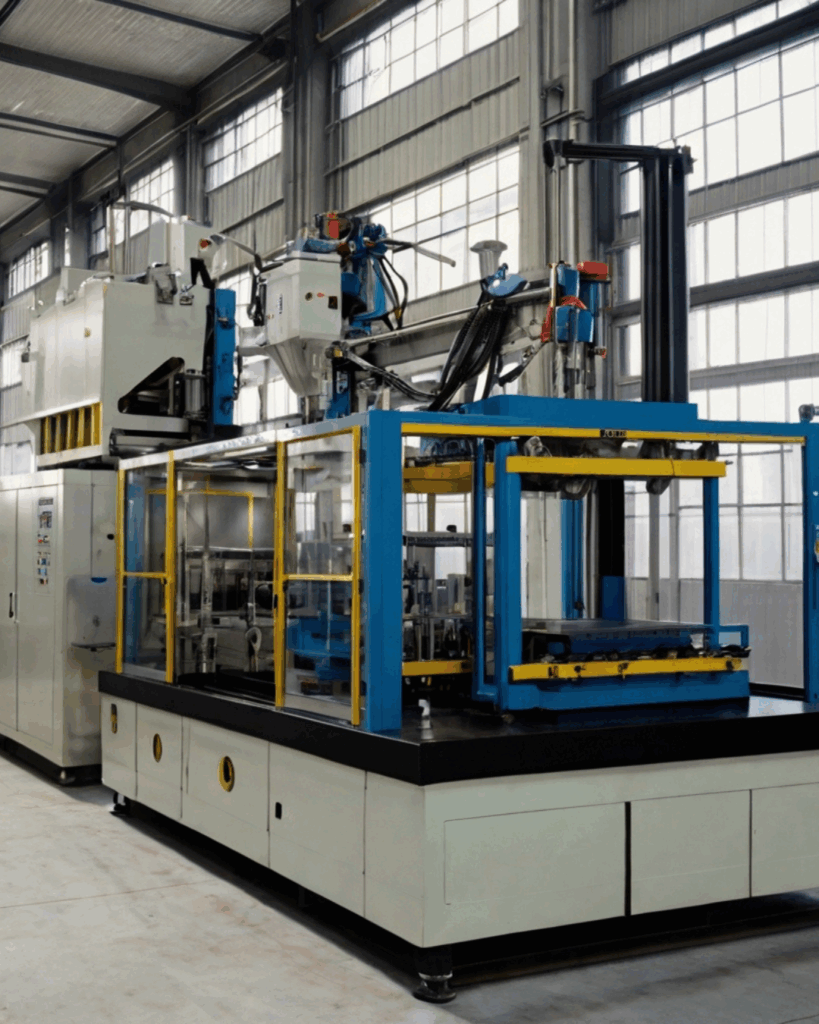

Injection Stretch Blow Moulding Machine (ISBM)
HJ-Core blends injection precision with hydraulic reliability. Designed for more detailed container shapes and tighter tolerances, it’s suitable for industries demanding higher control and finish.
Ideal for:
– Personal care and cosmetic bottles
– Pharmaceutical and medical-grade packaging
– Food-grade and specialty containers
Technical Data:
- Injection mould clamping force: 600 kN
- Blow mould clamping force: 50 kN
- Screw diameter: 50 mm
- L/D ratio: 24
- Real injection capacity (HDPE): 335 g
- Injection speed: 65 mm/s
- Max melt pressure: 1100 bar
- Plasticising (PS) at 250 rpm: 60 g/s
- Max rpm: 200 rpm
- Installed heating power: 11.5 kW
Contact us for detailed specs and a tailored solution with HJ-Core.
Choosing the right machine for your production needs can significantly impact the efficiency, cost-effectiveness, and quality of your output. Here’s why you should consider the HX-One, HX-Twin, or HJ-Core models from Portsmouth Plastics:
HX-One - For Efficient Single-Station Production
The HX-One is designed for businesses that need high precision in a single-station system. It’s perfect for small to medium production runs, where speed and consistency are key, but without the need for large-scale output. This machine is ideal for industries that require high-quality, reliable products in smaller volumes.
Key Features:
- Compact and cost-effective.
- Quick cycle times with high repeatability.
- Suitable for industries like Food & Beverage, Personal Care, and Automotive.
Why Choose HX-One?
If you’re looking for a highly efficient, user-friendly machine with low operating costs, the HX-One provides exceptional value for smaller runs and is easy to maintain. It’s the ideal solution for businesses starting to scale their production while keeping operations streamlined.
HX-Twin - For Increased Productivity with Dual Station Capability
The HX-Twin is the perfect choice for medium to large production volumes where you need higher throughput and dual-station flexibility. This model can operate at double the output of a single-station machine, allowing you to run two different products or processes simultaneously, ensuring better utilization of space and labor.
Key Features:
- Double station capability for higher productivity.
- Faster cycle times with seamless transitions between molds.
- Suitable for Automotive, Agrochemicals, and Industrial Packaging.
Why Choose HX-Twin?
If you’re running a high-volume operation and need the flexibility to produce multiple products or larger quantities in one cycle, the HX-Twin will help you maximize efficiency and output. It’s perfect for businesses with rapidly increasing production demands and those that need to stay competitive in a fast-paced market.
HJ-Core - For Complex Designs and High Precision Injection Moulding
The HJ-Core is built for industries where high precision, complex designs, and detailed product requirements are essential. This machine excels in injection moulding and blow moulding, delivering superior results in applications like medical containers, personal care products, and specialized packaging.
Key Features:
- Advanced injection moulding technology for precision.
- Ideal for complex and multi-component designs.
- Supports high-quality production for industries such as Medical, Pharmaceuticals, and Personal Care.
Why Choose HJ-Core?
If your production needs require intricate design features and the highest precision, the HJ-Core will meet your exacting standards. It’s built for complex tasks that require advanced moulding capabilities and consistency over extended production runs. Perfect for industries where product quality and safety are paramount, this model helps reduce defects and ensures exceptional results every time.
Why Choose Portsmouth Plastics Models?
At Portsmouth Plastics, we believe that the right equipment makes all the difference. Our machines, including the HX-One, HX-Twin, and HJ-Core, are built with over 30 years of experience in the industry. Each machine is designed to offer the perfect balance of efficiency, reliability, and quality, catering to different needs and production scales.
No matter your production requirements, we have a solution that ensures excellent value, ease of use, and long-term reliability. Plus, with our comprehensive support and customer service, you’ll always have expert help on hand.
Let us know which model suits your needs, and we’ll help you get started!
Industries We Support
We supply machines tailored for:
- Industrial & Automotive: Fuel containers, utility jugs, and custom plastic parts
- Food & Drink: Packaging that meets hygiene and safety needs
- Agricultural Chemicals: Sturdy canisters for fuels and sprays

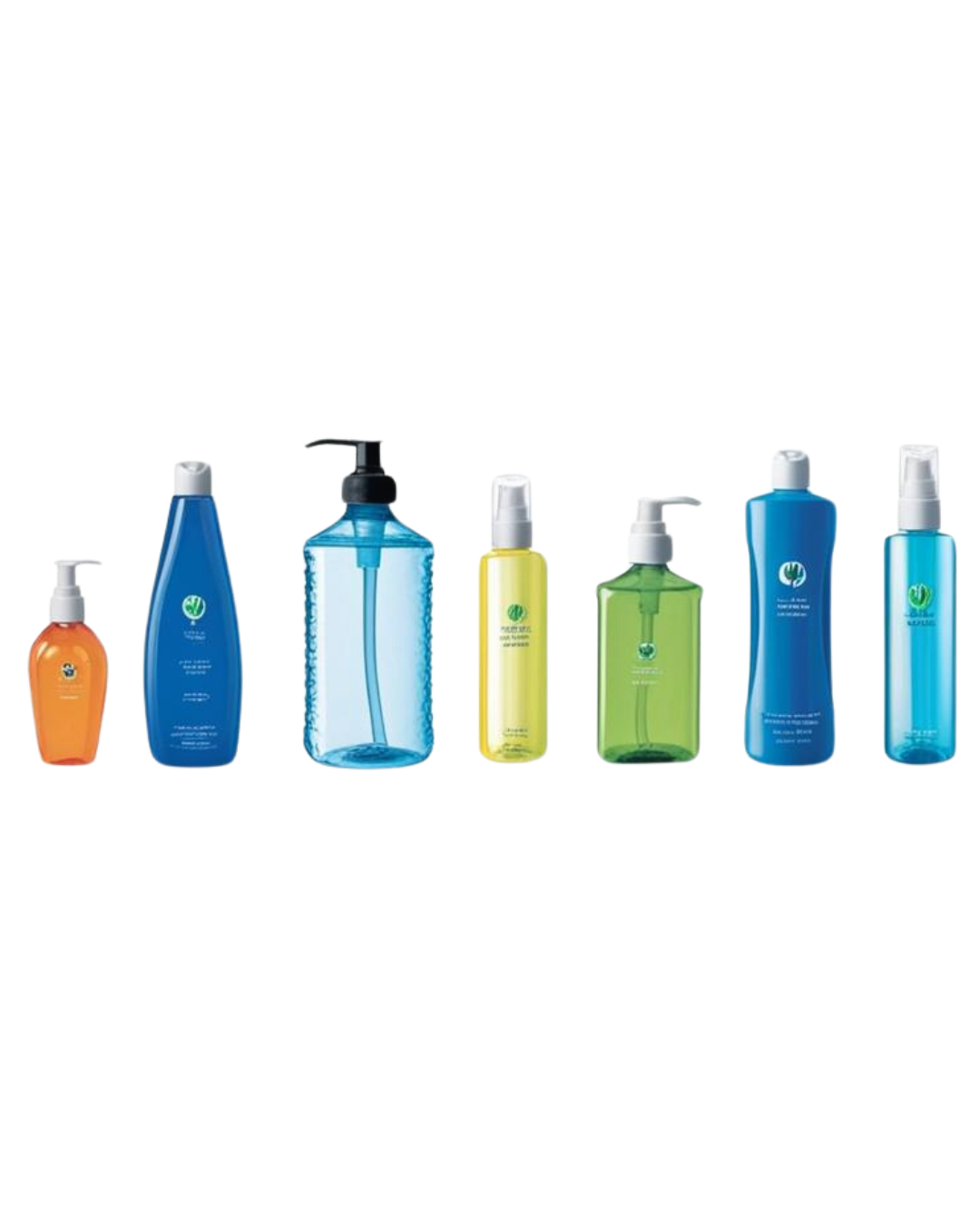

- Health & Hygiene: Bottles for personal care, cleaning, and medical use
Industrial Blow Moulding
Food & Beverage
Chemical Canisters
